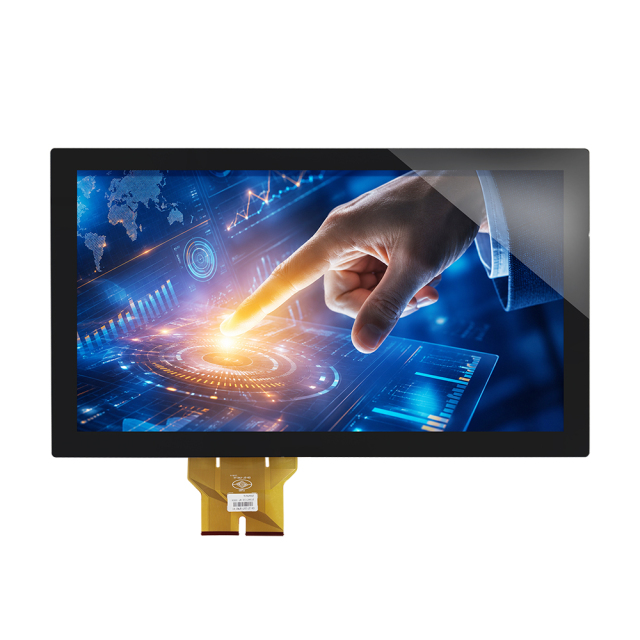

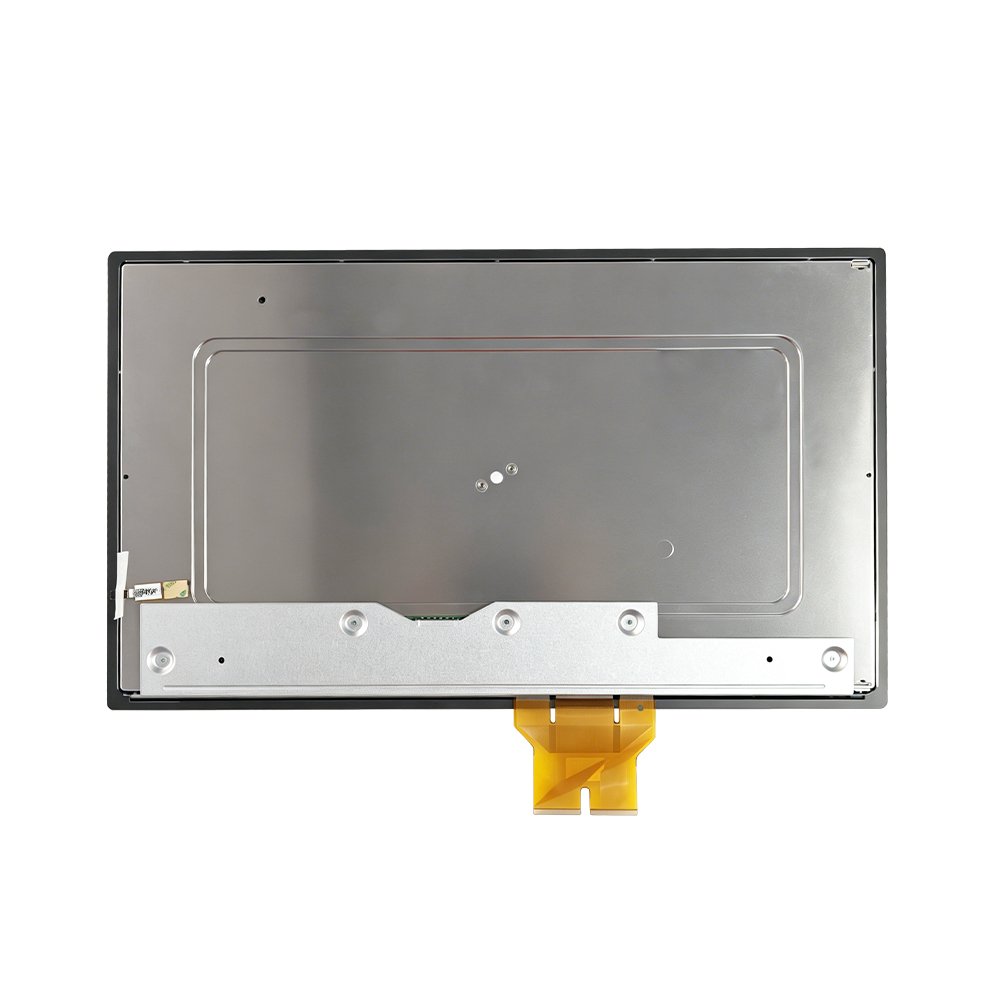

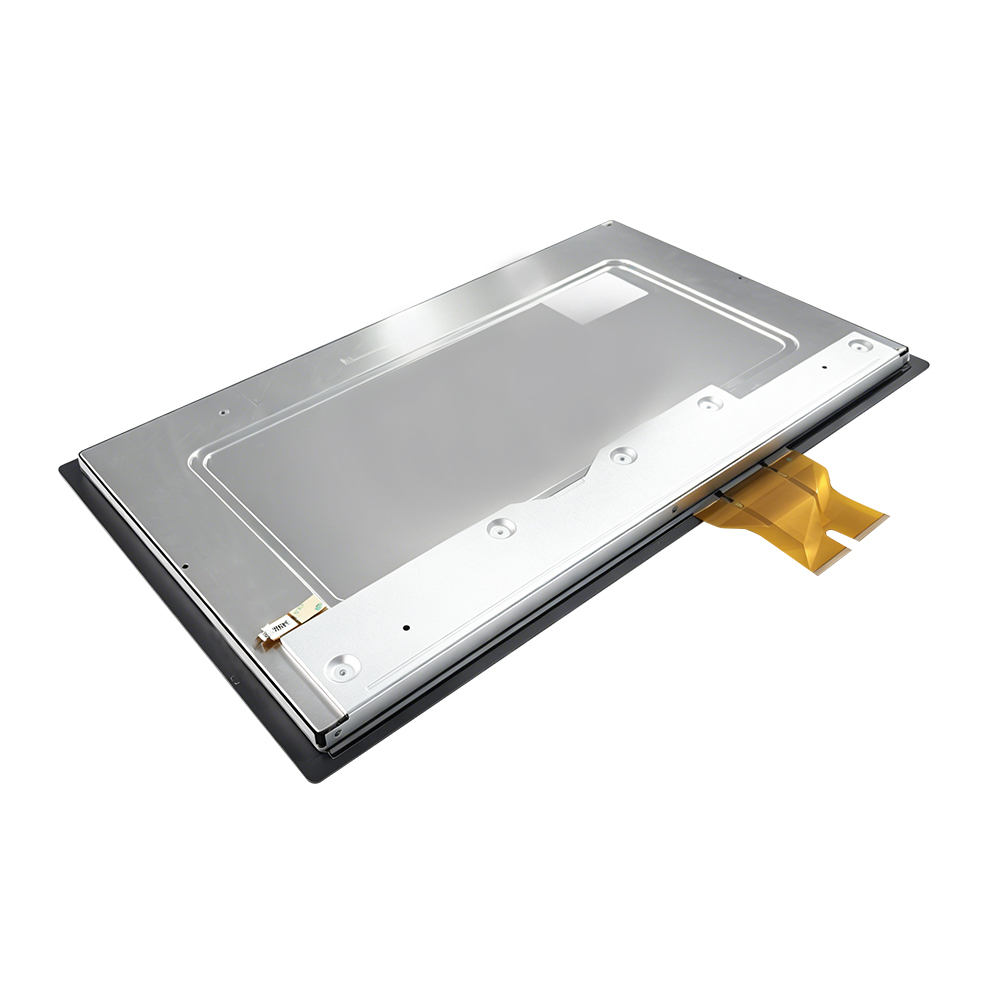

This touch module is mainly applied in the heavy industry sector. Tailored to the harsh operating environments typical of heavy industry, we have made optimizations in product sealing design and touch IC selection. An industrial-grade wide-temperature touch IC is adopted, supporting an operating temperature range of -40℃ to 85℃, which enables stable performance even under extreme outdoor weather conditions.
How to Solve Ghost Touch and Random Touch Point Jumping of Touch Modules in Heavy Industry Applications？ 1.A dedicated shielded grounding layer is added to the touch FPC. Industrial-grade shielded cables are adopted for the FPC, with both ends of the shielding layer reliably connected to the equipment chassis earth to suppress radiated interference generated by inverters, servo motors and contactors. The FPC traces are routed away from power cables and inverter output cables; strong and weak current circuits are arranged in separate wiring zones to avoid coupling interference caused by long-distance parallel wiring.
2.The metal bracket, backlight iron frame and conductive ink ring of the touch module are designed with annular grounding to quickly discharge static electricity and prevent abnormal capacitance jump of electrodes caused by static accumulation. The complete device adopts reliable single-point protective grounding, and multi-point floating grounding is prohibited.
3.An EMI filter circuit composed of TVS anti-static diodes, magnetic beads and tantalum capacitors is added at the touch power input terminal to suppress power ripple and surge interference from entering the touch main control chip, thus eliminating abnormal baseline drift caused by voltage fluctuations.
4.A grounded shielding conductive ring is printed on the edge of the cover glass, which can rapidly discharge static electricity and leakage current generated by surface water stains and dust to the ground, preventing the formation of large-area virtual touch points caused by conductive water films.
5.The OCA full lamination process together with four-side UV edge sealing is adopted to prevent water vapor and dust from penetrating into the sensor and causing tiny leakage of ITO circuits. Insulating shielding layers are added on both the upper and lower sides of the sensor to isolate interference from external electric fields to the sensing channels.
6.The FPC bonding area is sealed and reinforced with UV adhesive to avoid electric leakage caused by moisture. Industrial-grade connectors with locking structures and grounding shielding are adopted to eliminate contact impedance fluctuations resulting from poor interface connection.
7.Long-distance FPC is wrapped with shielding material and fixed in sections to prevent coupling interference caused by fluttering. The wiring length is minimized, and a signal relay transfer board is adopted when necessary to reduce the risk of weak anti-interference performance of long transmission lines.
How to Solve Inaccurate Touch of Touch Modules Caused by Environmental Factors in Industrial Applications 1.Dual-layer vacuum sputtered AF coating is adopted, which resists corrosion from engine oil, emulsified cutting fluid, cooling liquid and acid-base emulsion. It achieves a water contact angle of ≥110° and an oil contact angle of ≥75°. Splashes of cutting fluid and lubricating oil condense into spherical droplets and roll off the glass surface, preventing the formation of a continuous conductive oil film, thereby fundamentally eliminating full-screen false touches and multi-point touch disorder.
2.The wear resistance level reaches over 10,000 reciprocating friction tests with steel wool. The AF coating will not wear out rapidly even after long-term wiping of oil stains, preventing sticky screen surfaces, oil penetration and the problem of increasingly blurred display after repeated wiping.
3.Industrial-grade high creep-resistant OCA full lamination is applied to eliminate the air gap between the display screen and touch cover glass, completely preventing metal dust and emulsified cutting fluid from penetrating into the screen through gaps existing in frame bonding. This avoids local touch failure and regional touch malfunction caused by oil contamination corroding the ITO conductive circuits. Acid-alkali resistant and anti-yellowing industrial OCA optical adhesive is selected, which will not suffer adhesive layer corrosion, yellowing, bubble generation or delamination even with long-term exposure to trace volatile oil mist.
4.High-adhesion and solvent-resistant UV sealant is applied around the laminated edges of the cover glass and sensor to completely seal the side gaps. It prevents cutting fluid, coolant, oil mist and metal dust from infiltrating into the laminated interior and protects the ITO electrode circuits against electrochemical corrosion. In addition, it shields the FPC bonding area from erosion by water vapor and oil contaminants, avoiding poor contact and local touch failure caused by corrosion and oxidation at bonding positions.
5.The bonding golden finger area is fully encapsulated with black oil-resistant and moisture-proof epoxy adhesive, which isolates circuit solder joints from corrosion by volatile oil mist and condensed water vapor from machine tools, avoiding touch disorder and regional touch failure caused by poor contact due to oxidation. The FPC adopts oil-resistant and temperature-resistant PI substrate equipped with a shielding protective layer, preventing oil contamination from eroding the circuit insulating layer and thus avoiding electric leakage and false touches.
6.An EMI/ESD protection circuit consisting of magnetic beads, TVS diodes and filter capacitors is added to the touch power supply terminal to resist interference from electrostatic discharge induced by oil contamination. The TX driving voltage is raised to improve the touch signal-to-noise ratio and filter clutter signals generated by weak leakage current from oil films.
FAQ 1.Q: How does your touch module avoid false touches caused by cutting fluid, lubricating oil and oil mist in heavy industry workshops? A: We adopt a dual-layer vacuum sputtered AF coating with excellent resistance to various industrial liquids. It features a water contact angle ≥110° and an oil contact angle ≥75°, allowing oil droplets to roll off the glass surface instead of forming continuous conductive oil films. Meanwhile, touch algorithms and optimized hardware circuits filter weak leakage clutter signals from oil films to fundamentally prevent full-screen mis-touch and multi-point disorder.
2.Q: Will frequent wiping of oil stains in harsh working environments quickly damage the surface coating and affect touch experience? A: Our AF coating passes over 10,000 reciprocating steel wool friction tests. It delivers outstanding wear resistance and will not wear off rapidly after long-term repeated wiping. This effectively avoids sticky glass surfaces, oil penetration and blurred screens caused by coating abrasion.
3.Q: How do you prevent internal touch failure caused by the infiltration of metal dust and industrial liquids? A: We use industrial high creep-resistant OCA full lamination plus four-side solvent-resistant UV edge sealing to eliminate gaps. The FPC golden finger area is fully encapsulated with black moisture-proof and oil-resistant epoxy glue, which stops cutting fluid, coolant, oil mist and metal dust from penetrating inside and protects ITO circuits and solder joints from electrochemical corrosion and oxidation-induced local touch disconnection.
4.Q: What measures are adopted to enhance the anti-interference capability against static electricity and electromagnetic disturbance on industrial sites? A: An EMI/ESD protection circuit composed of magnetic beads, TVS diodes and filter capacitors is deployed at the touch power input to suppress static discharge interference from oil contaminants. We also increase the TX driving voltage to boost the signal-to-noise ratio and filter miscellaneous signals triggered by tiny leakage current on the glass surface.
5.Q: Why is the FPC of this touch module suitable for long-term heavy-duty industrial scenarios? A: The FPC is made of oil-resistant and high-temperature-resistant PI substrate with an additional shielding protective layer, which prevents insulation layer erosion and leakage false touches from industrial oil stains. Together with fully sealed bonding zones and shielded wiring design, it ensures stable touch performance even in high oil mist, humid and strong electromagnetic interference environments.
