3.The edge signal gain algorithm is enabled to automatically boost sampling sensitivity for weak-signal electrode areas at both ends of strip screens, compensate the sensing signal strength on both sides, and reduce the touch blind zone along the screen edges.
4.A bidirectional wiring and dual-side driving layout scheme is adopted. Driving and receiving electrodes are arranged on both the left and right ends of the touch layer simultaneously, which avoids voltage drop and signal attenuation caused by single-sided long-distance wiring, balances signal strength between the two ends of the screen, and improves linear deviation on the long edge from the hardware level.
5.
6.The cover plate adopts thickened aluminosilicate tempered glass to enhance the bending resistance of the long strip glass and reduce the probability of bending deformation under locking and equipment vibration conditions. The high-rigidity material prevents abnormal impedance caused by stretching and extrusion of ITO circuits, eliminating segmented point jumping and local touch failure.

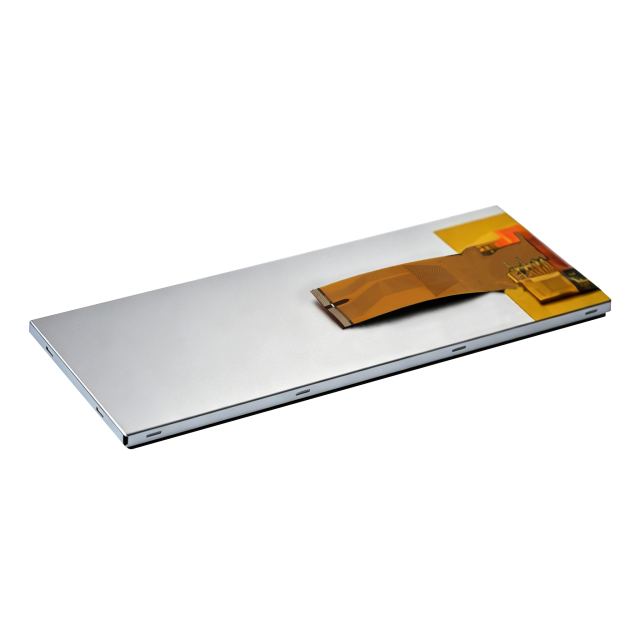

How to Improve the Anti-Interference Performance of Strip Touch Screens in Application1.The FPC features a double-sided copper-clad shielding structure. Grounded copper foil shielding layers are arranged on both the upper and lower sides of the flexible cable. Signal wires are fully wrapped with conductive grounding adhesive to isolate radiant interference from external inverters, motors and power cables. This prevents long-distance wiring from acting as an antenna and picking up stray electromagnetic noise.
2.The shielding layer is grounded reliably at multiple points, with one end connected to the module shielding ground and the other to the equipment’s main earth. It quickly dissipates coupled electromagnetic interference noise, significantly reduces signal crosstalk generated by long cables, and resolves issues such as mid-screen ghost touch and intermittent touch disconnection.
3.The signal cables adopt differential shielding wiring design. Touch driving and receiving signals are routed in paired differential traces to enhance the ability to resist common-mode interference, enabling stable signal transmission over the long length of strip screens.
4.The shielded long FPC is deployed with separated strong and weak current wiring, which thoroughly eliminates electromagnetic coupling interference caused by the antenna effect of long strip cables, and resolves faults including mid-screen ghost touch and intermittent touch disconnection.
5.Dual EMI protection consisting of hardware shielding and software filtering greatly reduces the failure rate of narrow and long touch screens in industrial control environments with strong electromagnetic interference, and prevents production safety accidents and defective products caused by equipment misoperation.
6.Standardized grounding and EMC component design improve the versatility of the module in industrial environments, extend the service life of strip touch modules, and reduce on-site after-sales repairs as well as production line downtime losses.
FAQ1.Q: Why does the long strip touch screen suffer from coordinate offset and adjacent key false touches?A: Our touch main controller supports ultra-high aspect ratio and segmented dynamic impedance compensation. Multi-segment independent impedance sampling is conducted horizontally and vertically to automatically correct signal attenuation deviations at both ends. Combined with dozens of factory calibration points and edge signal gain algorithms, it realizes full-screen linear touch balance, effectively solving coordinate drift and mis-touch of adjacent keys for displays with an aspect ratio of 5:1 and above.
2.Q: How does your strip touch screen improve touch uniformity compared with conventional single-side FPC wiring solutions?A: We adopt bidirectional electrode layout, dual-side driving design and dual-end FPC bonding structure. FPC wires are led out from both left and right sides to share voltage drop during long-distance signal transmission. Together with thickened high-alumina silicate glass to avoid ITO deformation, the touch uniformity of the long strip screen is significantly optimized.
3.Q: What measures are taken to avoid ghost touch and intermittent touch failure under strong electromagnetic interference in industrial sites?A: We adopt dual EMI protection of hardware shielding plus software filtering. The FPC is designed with double-sided copper shielding layers and differential signal wiring, with multi-point reliable grounding to release interference noise rapidly. Strong and weak current wiring isolation prevents the antenna effect of long cables from inducing electromagnetic coupling interference, which effectively eliminates mid-screen ghost touch and intermittent disconnection.
4.Q: Will equipment vibration or locking force cause touch failure of the long narrow touch screen?A: The cover glass uses thickened high-rigidity aluminosilicate tempered glass, which greatly improves bending resistance and reduces deformation under vibration and locking pressure. It avoids abnormal impedance of stretched or extruded ITO circuits, preventing segmental point jumping and local touch malfunction.
5.Q: Can your touch module adapt to various industrial scenarios and reduce after-sales maintenance costs?A: The module adopts standardized grounding design and professional EMC components, featuring wide-temperature working range, complete EMI protection and stable touch calibration performance. It boasts strong versatility in industrial environments, extends service life, effectively cuts on-site repair frequency and avoids economic losses caused by production line downtime.
